Drawing Symbols & Annotations: How Architects Communicate Design Clearly

By an Architect with 20 Years of Practice

After two decades in architecture, one truth has never changed: a drawing only works if it communicates clearly. No matter how strong the concept or elegant the design, a project lives or dies by the clarity of its drawings. Drawing symbols and annotations are not decorative—they are the language of construction.

Early in my career, I learned that the most successful projects weren’t necessarily the most complex ones. They were the ones where anyone—contractor, consultant, or client—could open the set and immediately understand what they were looking at. That understanding begins with symbols, annotations, and how drawings are organized.

---

Drawings as a Language

Architectural drawings function as a shared language. They communicate details, reduce clutter, guide the reader, and keep the entire project organized. When used correctly, symbols and annotations allow us to say more with less—providing clarity without overwhelming the page.

Over time, I’ve come to see drawings not just as technical documents, but as instructions for collaboration. Every symbol, tag, and note exists to help someone else make the right decision in the field.

---

Reading a Drawing Reference

Start with the project’s own legend, abbreviations, and general notes. The examples below are common conventions, not a substitute for those project-specific definitions.

Example	Typical meaning	What to check
2/A301	Drawing 2 on sheet A301	Locate sheet A301, then drawing 2; read its title and scale.
AFF	Above finished floor	Check the dimension and the finish-floor datum used.
TYP	Typical	Read the note’s scope; do not assume it applies to every condition.
Door or window tag	An identifier linked to a schedule	Match the tag to its schedule row for size, type, and other requirements.

For example, a section reference marked 2/A301 directs you from the plan to another view. Find drawing 2 on A301, check the viewing direction on the plan, and read the section’s notes and dimensions together. If the reference is missing or contradictory, ask the design team for clarification.

Start with the Sheet

Good communication always starts at the sheet level. Every sheet must have a clear name and number, and every drawing on that sheet must also be identified with its own name and number.

This structure is not optional—it is foundational.

When drawings lack consistent labeling, confusion follows. Contractors waste time searching, consultants misreference details, and errors multiply. A well-organized sheet layout sets expectations and establishes trust before anyone reads a single note.

---

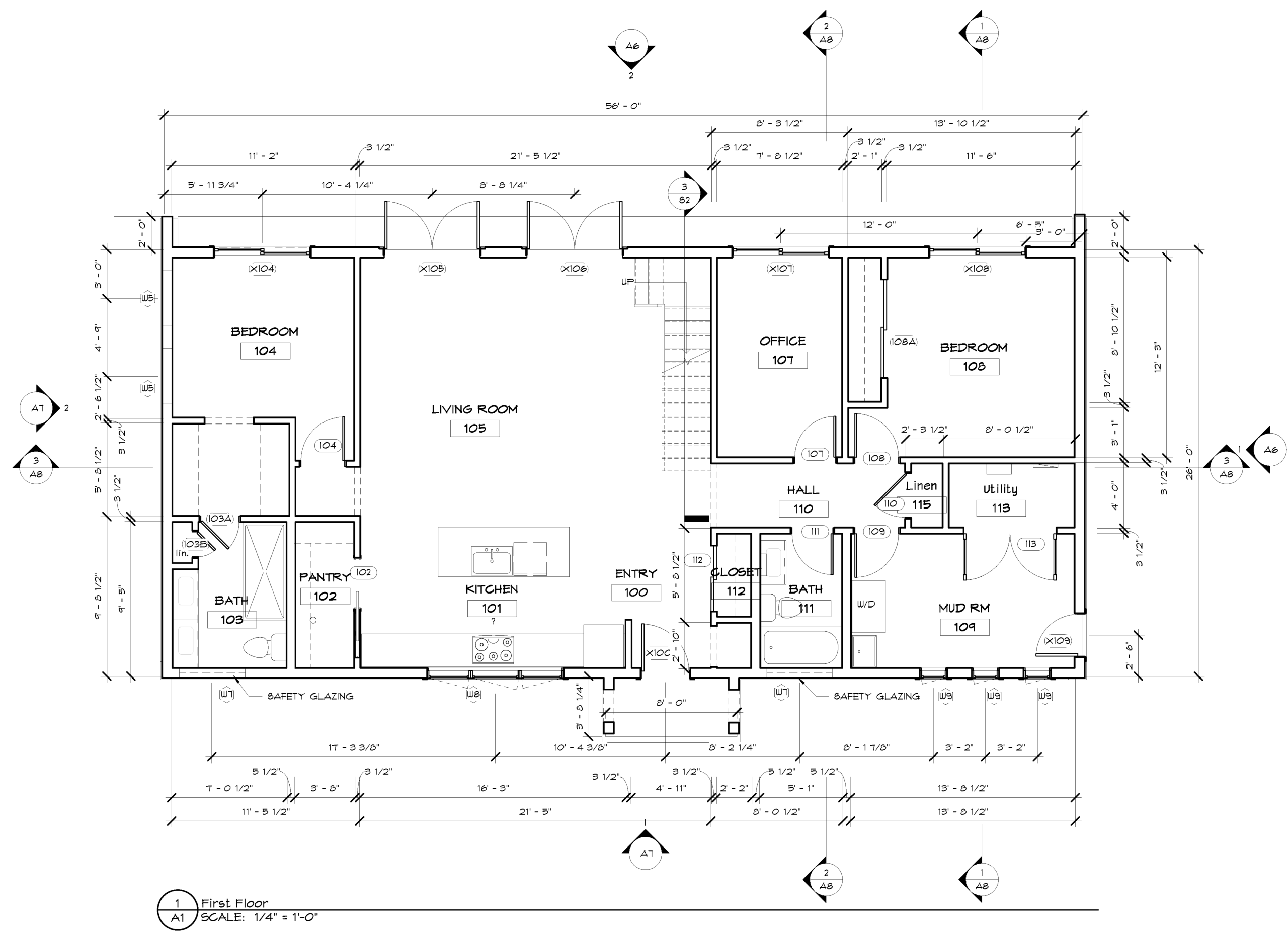

The Plan: Where Everything Comes Together

The plan drawing carries the most information and often receives the most attention. At a minimum, it should clearly identify:

• Room names and numbers
• Building section references
• Wall section references
• Door tags
• Window tags

From experience, I can say that a clean plan tells a story at a glance. The reader should immediately understand how spaces relate, where key elements are located, and how to find additional information when needed.

---

Plans in Detail

As a drawing develops, additional layers of information are introduced. This includes:

• More detailed dimensions
• Fixture tags
• Interior elevation references
• Notes appropriate to the level of detail

This is where discipline matters. Too little information leaves questions unanswered; too much information creates visual noise. The goal is always balance—providing exactly what is needed at that stage of the project.

---

Dimensions: Precision with Purpose

Dimensions are not just numbers; they define intent.

Plans rely on horizontal and vertical dimensions to communicate size, alignment, and relationships. These dimensions typically describe:

• Overall building or room sizes
• Major plan features
• Locations of key elements

In practice, unclear or inconsistent dimensions are one of the fastest ways to introduce errors in construction. Clear dimensioning reduces assumptions and protects the design.

---

Sections: Revealing What Plans Cannot

Plans show relationships; sections explain how things are built.

Building sections and wall sections reveal construction depth, material transitions, and structural relationships that cannot be understood in plan alone. Over the years, I’ve learned that a well-placed section can eliminate dozens of written notes.

When sections are clear, construction becomes more intuitive.

---

Door and Window Tags: Small Symbols, Big Impact

Door and window tags may seem minor, but they are critical connectors between drawings and schedules. They allow builders to quickly identify sizes, types, and locations without hunting through the drawing set.

Consistency here is key. When tags are clear and predictable, coordination improves across disciplines.

---

Interior Elevations: Designing at the Human Scale

Interior elevations focus on what occupants will see and interact with. They communicate:

• Fixture placement
• Vertical relationships
• Material transitions

From experience, interior elevations often prevent costly mistakes. They clarify intent in areas where plan drawings alone fall short—especially in kitchens, bathrooms, and detailed interior spaces.

---

Final Thoughts

After 20 years, I can say this with confidence: great architecture depends on great drawings.

Symbols and annotations may not be glamorous, but they are essential. They allow ideas to move from paper to reality without losing meaning along the way.

When drawings are clear, construction becomes smoother, collaboration improves, and the design stands a far better chance of being built as intended. In the end, that clarity is one of the architect’s most valuable tools.
